Place of Origin:
China
اسم العلامة التجارية:
zhongloo
إصدار الشهادات:
ISO/CE
Model Number:
Geogrid/Uniaxial geogrid
اتصل بنا

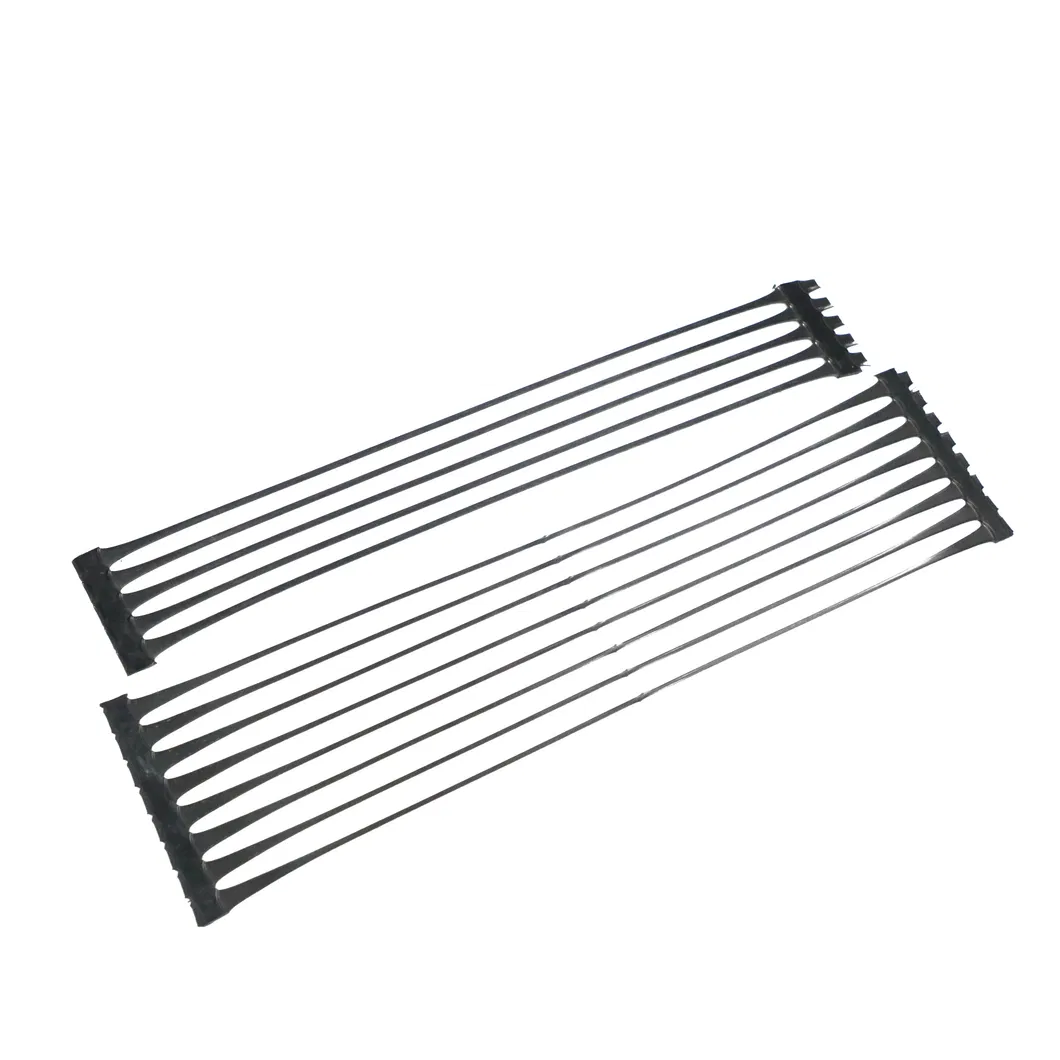

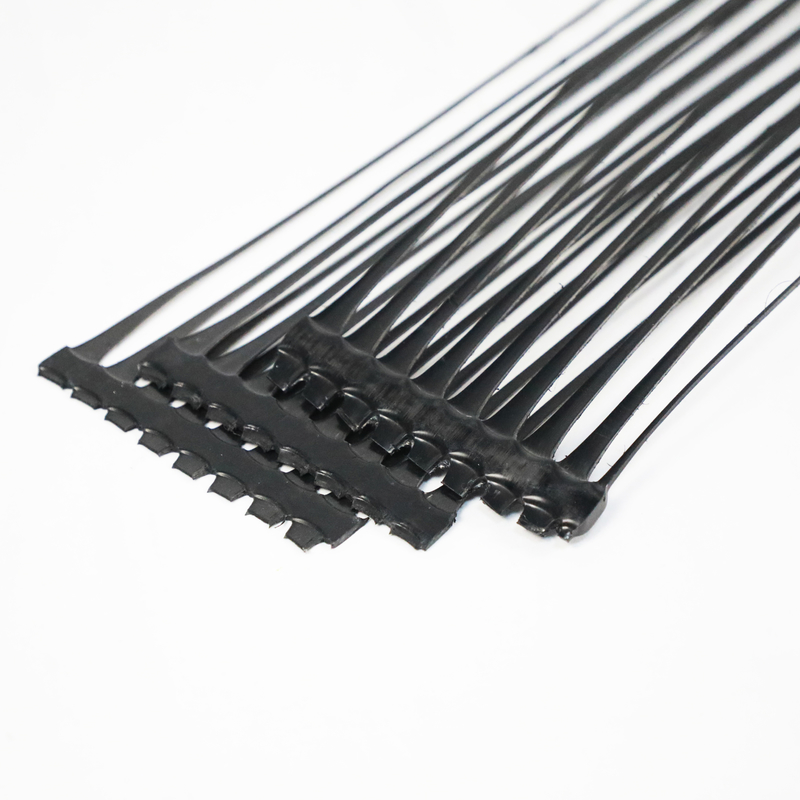

Geogrid Product Features
1. Unidirectionally high tensile strength, good creep resistance, chemical nature is stable;
2. The friction coefficient with gravel is large.
|
uniaxial geogrid(PP)Technical Parameter (GB standard)
|
|||||||||
|
Item
|
Specification
|
||||||||
|
Type
|
TGDG35
|
TGDG50 |
TGDG80 |
TGDG110 |
TGDG120 |
TGDG150 |
TGD200 |
TGDG260 |
TGDG300 |
|
Tensile Strength≥(KN/M)
|
35
|
50
|
80
|
110
|
120
|
150
|
200
|
260
|
300
|
|
Maximum elongation≤(%)
|
10
|
||||||||
|
Tensile strength at 2% elongation≥(KN/M)
|
10
|
12
|
26
|
32
|
36
|
42
|
56
|
94
|
108
|
|
Tensile strength at 5% elongation≥(KN/M)
|
22
|
28
|
48
|
64
|
72
|
84
|
112
|
185
|
213
|
Geogrid Application and Benefits:

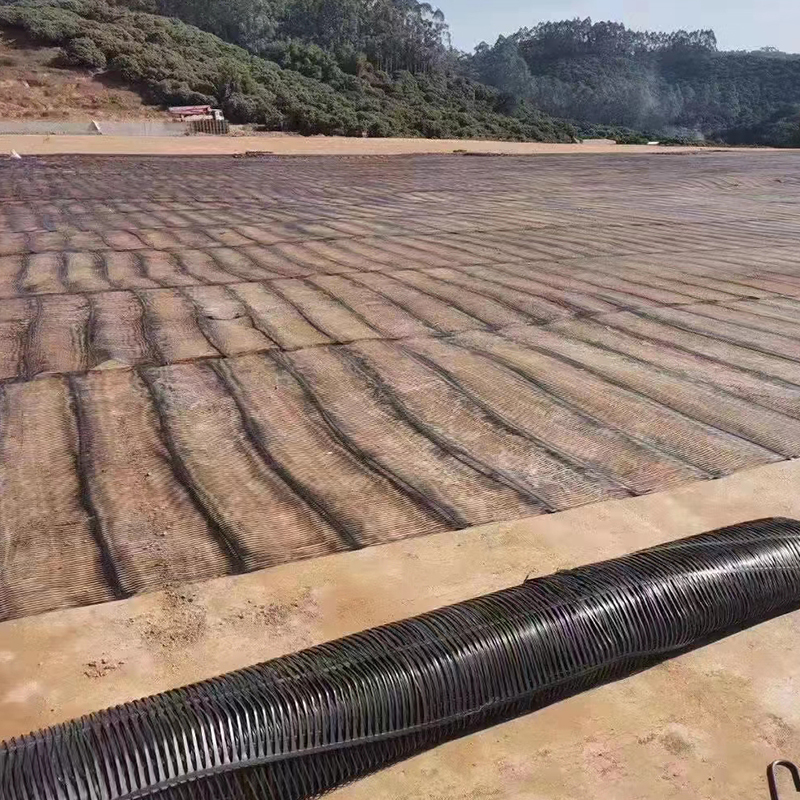

Uniaxial geogris is kind of high strength geosynthetic. It has extensive applications in dyke, tunnel, pier, highway, railway and building.
Geogrid main applications are follows:
1. Enhance roadbed distortion and crack caused by the loss of roadbed materials;
2. Bear more alternate load;
3. Prevent roadbed distortion and crack caused by the loss of roadbed materials;

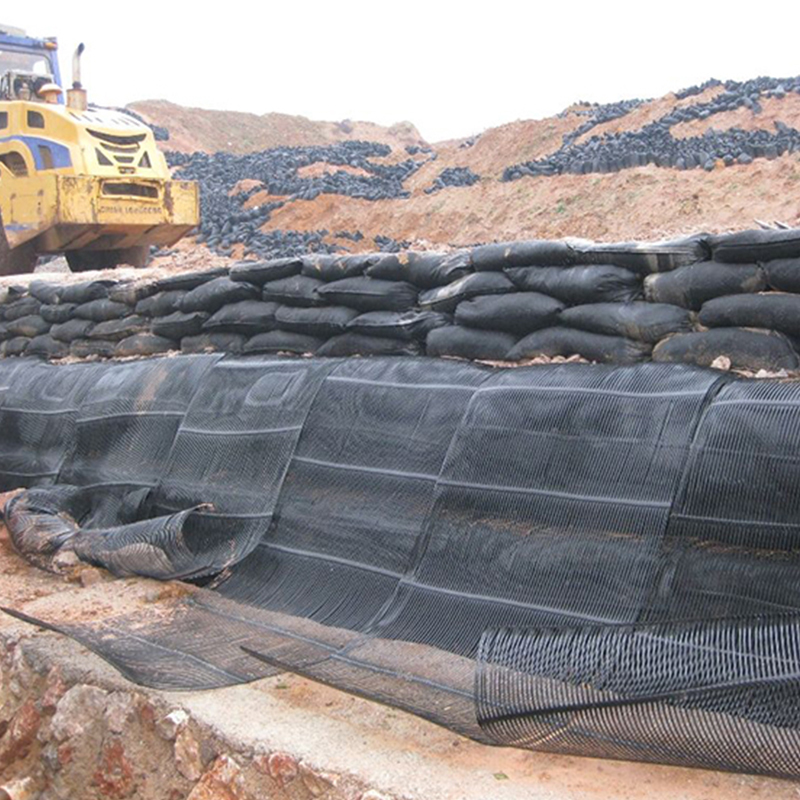

4. Increase the self-supporting property of fill behind retaining wall, decrease the earth pressure of retaining wall, save cost, increase service life and reduce maintenance expenses;

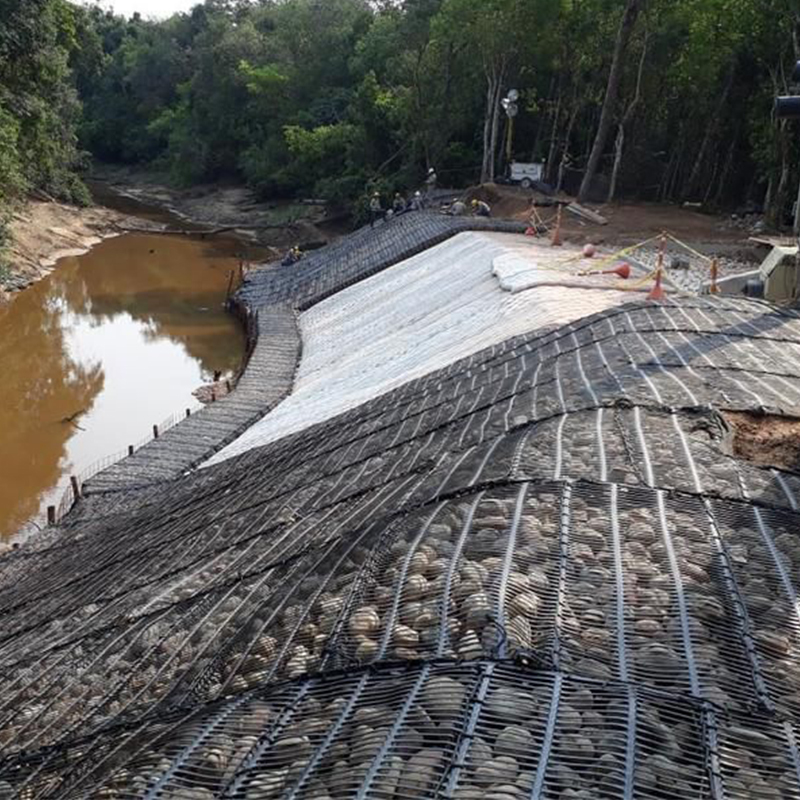

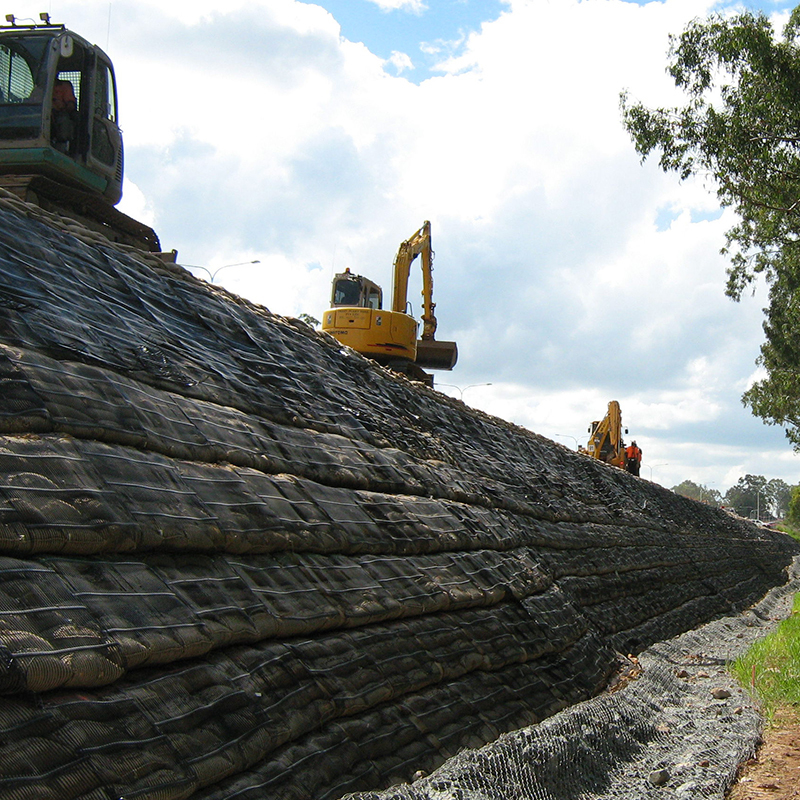

5. Combine anchor sprouting concrete construction method to give side slope maintenance, which not only saves investment by 30%-50% but also reduces erection time by one time or above;
6. To increase geogrid in the roadbed and surface of highways can reduce flexure, track and put off the flawing appearance by 3-9 folds and reduce the thickness of structural layer by 36%;

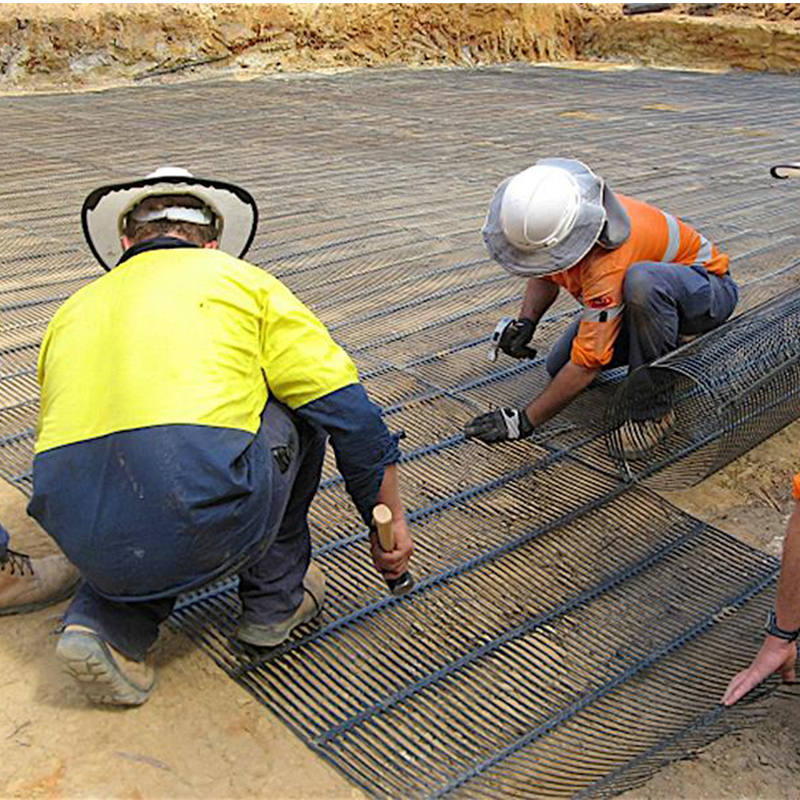

7. Simple and rapid construction will greatly reduce the construction cost.
FAQ
1.What is geosynthetics ?
Geosynthetics form a perfect erosion control fabric used extremely widely in civil engineering to stabilize and reinforce slopes and soil under or next to roads, railways, dams, water reservoirs etc.. They can be easily applied which minimizes the time of construction, as well as they limit the resources and materials necessary.
What kinds of geosynthetics we have ?
Non-woven geotextile, geogrids, geocells, GCL, Geomembranes, Geonets, Geocomposites etc .
What is the geosynthetics used for ?
Lagooning and Water Treatment, Ornamental Ponds, Golf Courses
Aquaculture and Desalination,Water Lagoons,Tanks, Reservoirs, Liquid Waste,Floating Cover Solutions, Drainage and Filtration
Environment
Tailing ponds, Leach mining,Landfills,Landfill Capping,Protection against corrosion,Vertical Barriers
Civil Works
Erosion Control,Secondary Containment,Tunnels,Linear and Surface Works,Consolidation of Margins,Soil Reinforcement,Soil Separation.
Building - Parkings,Roofing,Soundproofing
Professional geosynthetics manufacturer
Anhui Zhonglu Engineer Materials Co., Ltd
